JIS Standard Steel Rail is a hot-rolled rail manufactured in accordance with JIS E1103/1101 and JIS E1103-91 standards. It includes light rails, heavy rails, and crane rails.
Prime Track Resources has been supplying JIS standard steel rails for some time now and maintains a stock of JIS rails to meet customer needs.
JIS Standard Steel Rail Options
SPECIFICATIONS OF THE JIS STANDARD STEEL RAIL
| Size | Rail height(mm) A | Bottom Width(mm) B | Head Width(mm) C | Web Thickness(mm)t | Weight(kg/m) |
| 9kg | 63.50 | 63.50 | 32.10 | 5.90 | 8.94 |

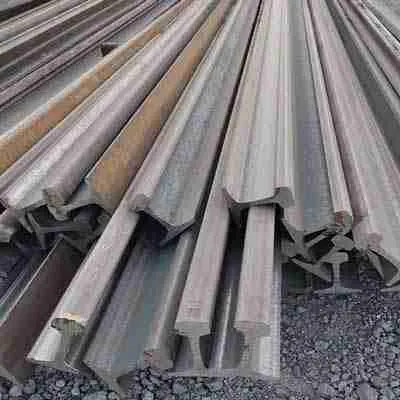

| 10kg | 66.67 | 66.67 | 34.13 | 6.35 | 10.10 |
| 12kg | 69.85 | 69.85 | 38.10 | 7.54 | 12.20 |
| 15kg | 79.37 | 79.37 | 42.86 | 8.33 | 15.20 |
| 22kg | 93.66 | 93.66 | 50.80 | 10.72 | 22.30 |

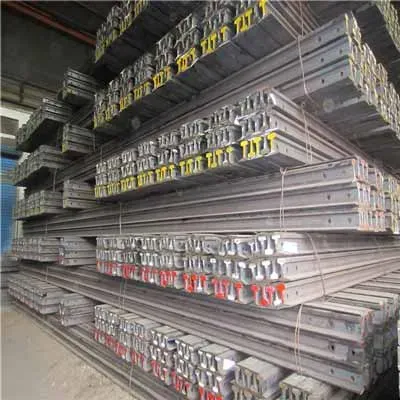

| 30kg(30A) | 107.95 | 107.95 | 60.33 | 12.3 | 30.10 |

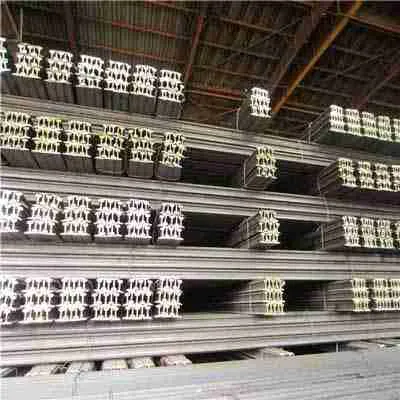

| 37kg(37A) | 122.24 | 122.24 | 62.71 | 13.49 | 37.20 |

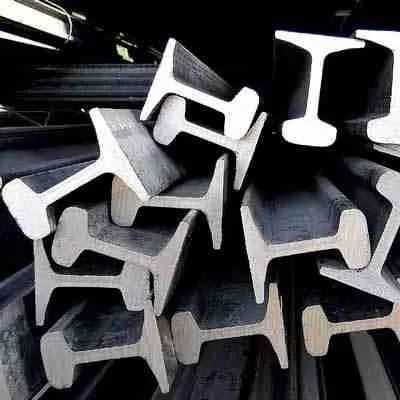

| 40kgN(40N) | 140.00 | 122.00 | 64.00 | 14.00 | 40.9 |

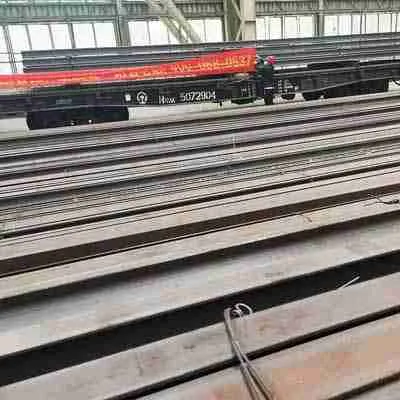

| 50kg (50PS) | 144.46 | 127.00 | 67.87 | 14.29 | 50.4 |
| 50kgN(50N) | 153.00 | 127.00 | 65.00 | 15.00 | 50.4 |

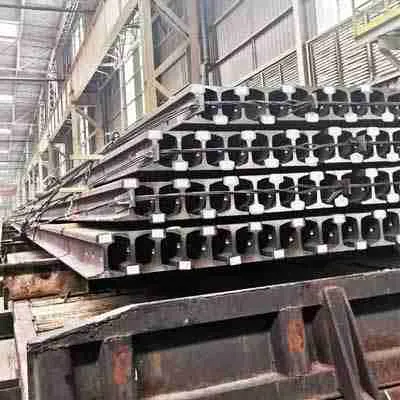

| 60kg | 174.00 | 145.00 | 65.00 | 16.50 | 60.8 |

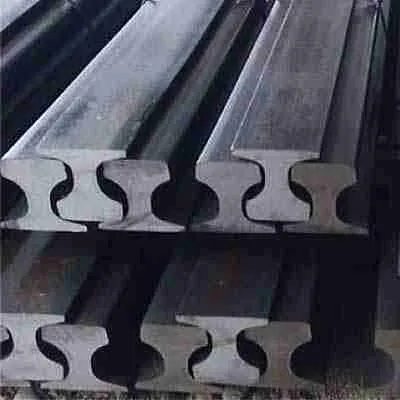

| CR73 | 135.00 | 140.00 | 100.00 | 32.00 | 73.30 |

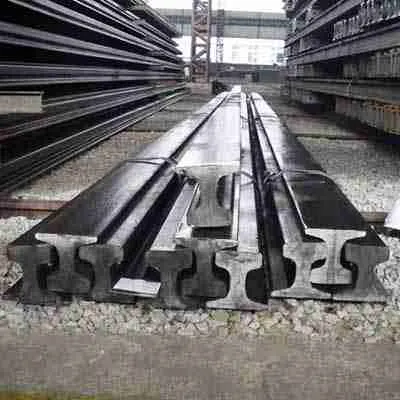

| CR100 | 150.00 | 155.00 | 120.00 | 39.00 | 100.20 |
