Heavy Steel Rail

Heavy steel rail differs from light rail as it is designed to support heavy vehicles. The term “heavy” does not refer to the weight of the rail itself but rather to its thicker and more robust construction, which allows it to withstand greater loads. As a result, heavy rails are manufactured to higher specifications.

We supply a wide range of heavy steel rails, including 38KG, 43KG, 50KG, 60KG, and 75KG rails.

Heavy Steel Rail Options

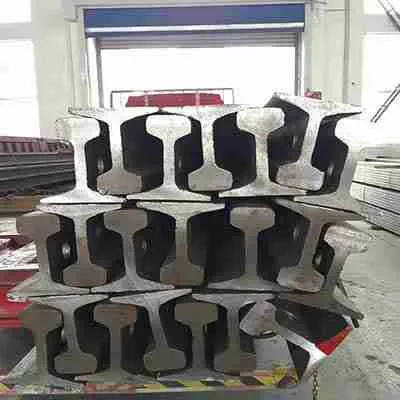

38kg Heavy Steel Rail

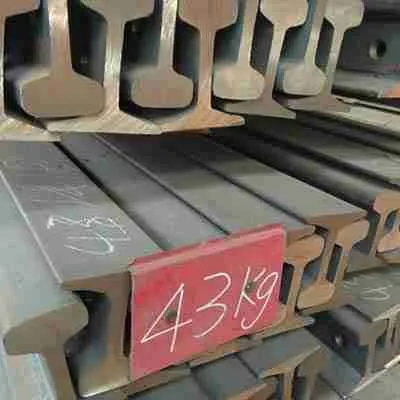

43kg Heavy Steel Rail

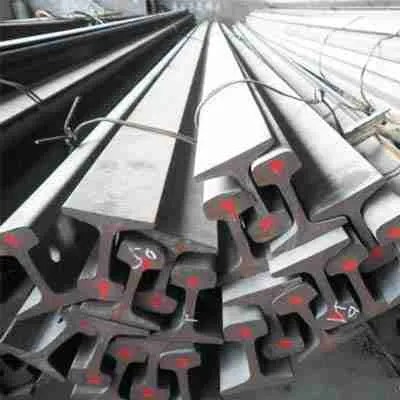

50kg Heavy Steel Rail

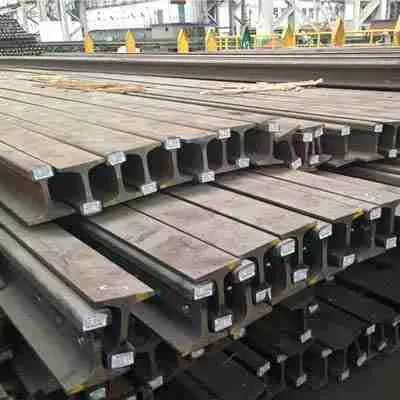

60kg Heavy Steel Rail
70kg Heavy Steel Rail

SPECIFICATIONS OF THE HEAVY STEEL RAIL

SizeRail height(mm)
A
Bottom Width(mm)
B
Head Width(mm)
C
Web Thickness(mm)
t
Weight(kg/m)
38kg1341146813.038.730
43kg1401147014.544.653
50kg1521327015.551.514
60kg1761507316.560.640
75kg192150752074.414
